In the competitive world of manufacturing, precision and accuracy stand as pillars of product quality. The demand for complex components with tight tolerances has driven the adoption of advanced machining technologies. Among these, 5 axis CNC machining has emerged as a revolutionary process that significantly enhances the accuracy and efficiency of milling parts. But how exactly does 5 axis CNC machining improve milling parts accuracy In this article, we will delve deep into the mechanics, advantages, and applications of 5 axis CNC machining, supported by key SEO keywords like 5 axis CNC machining, milling parts accuracy, factory customization, and vertical machining.The data shows that, CNC milling turning services Its development potential should not be underestimated, and it is also the inevitability of its existence. https://www.adphardware.com/

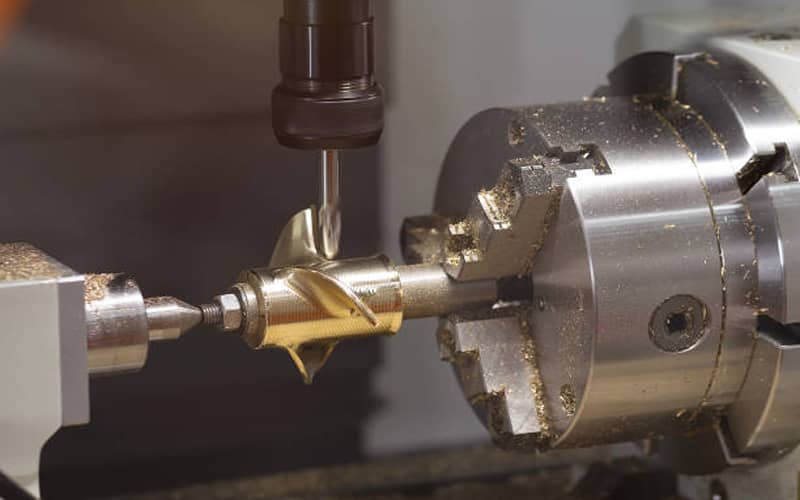

5 axis CNC machining
5 axis CNC machining refers to a computer-controlled process that moves a cutting tool or workpiece along five different axes simultaneously. Unlike traditional 3 axis machining, which only moves along the X, Y, and Z axes, 5 axis machines add two rotational axes (typically labeled A and B), allowing for complex geometries to be machined in a single setup. This capability reduces the need for multiple repositioning and enhances machining precision.
The Importance of Accuracy in Milling Parts
Milling parts accuracy is critical in industries such as aerospace, automotive, medical devices, and electronics, where even the slightest deviation can lead to product failure or compromised safety. Achieving tight tolerances and superior surface finishes requires precision machining techniques that minimize errors introduced by manual handling or multiple setups.
CNC Machining factory
How 5 Axis CNC Machining Enhances Milling Parts Accuracy
1. Single-Setup Machining Reduces Errors
One of the primary reasons 5 axis CNC machining improves accuracy is its ability to machine complex parts in a single setup. Traditional 3 axis machining often requires multiple setups, which can introduce alignment errors each time the part is repositioned. By manipulating the part or cutting tool along five axes, 5 axis CNC machines maintain consistent alignment throughout the entire machining process. This reduces the cumulative errors and ensures parts meet exact specifications.
2. Improved Tool Access and Optimal Cutting Angles
5 axis machines provide better tool access to difficult-to-reach areas by tilting and rotating the cutting head or workpiece. This flexibility allows for machining intricate features and undercuts that would be impossible or less precise with fewer axes. Maintaining optimal cutting angles helps reduce tool wear and vibration, which in turn enhances surface finish quality and dimensional accuracy.
3. Minimizing Manual Intervention and Setup Time
Manual setups can be time-consuming and prone to human error. 5 axis CNC machining automates complex movements, reducing the need for operator intervention during production. This automation improves repeatability and consistency across batches, ensuring each milling part adheres to the same quality standards.
4. Advanced Software and Simulation Capabilities
Modern 5 axis CNC machines are integrated with sophisticated CAM (Computer-Aided Manufacturing) software that simulates the machining process before production. These simulations detect potential collisions, optimize tool paths, and plan the most efficient machining sequence. By anticipating issues ahead of time, manufacturers reduce scrap rates and improve first-time accuracy.
5. Enhanced Surface Finish and Detail
Because 5 axis CNC machining can approach the workpiece from multiple angles, it allows for smoother tool paths and continuous machining, avoiding the ＾stair-step￣ effect seen in less advanced machining. This results in superior surface finishes and precise detail, crucial for high-quality milling parts.
